Copper Earth Rods - Wallis ERB 412 - 1/2" (12.7mm) 1200mm Earth Rod

Earth Rods - Copperbond

Copper Earth Rods 1/2"

Material: Copper to BS EN 13601

AN Wallis ERB412



Pure copper bonded earth rod onto steel core rod.

T&D distribute the complete range of copperbond earth rods offering installers the most economical method of achieving a low earth resistance for earthing system designs – each copper earth rod has a high tensile strength and low carbon steel core.

99.95% pure copper is applied electrolytically forming a metallurgical bond between the steel core and the copper. This combination makes the copper earth rod ideal for deep driving whilst also provides lasting resistance to corrosion in aggressive soil and ground conditions.

The standard copper earth rod thickness is 0.25mm.

Copperbond earth rods are available with 1/2″, 5/8″ and 3/4″ threads – solid copper earth rods also available.

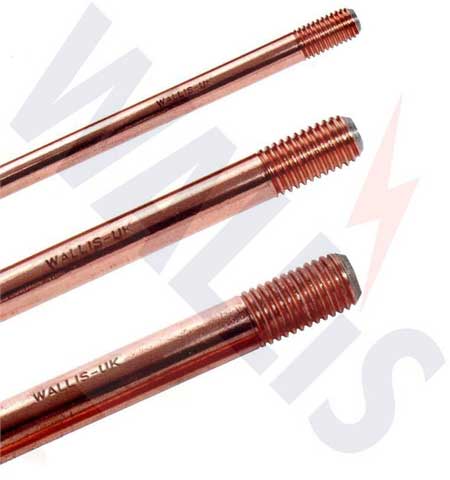

Pictured: AN Wallis Copperbond Earth Rods (Copper manufactured to BS EN 13601 standards)

AN Wallis Copperbond Earth Rods - Product Range

Part Number	Nominal Size	Length	Thread Size (UNC-2A)	Shank (D)	Length 1	Unit Weight	Pack Quantity
ERB 412	1/2"	1200mm	9/16"	12.7mm	30mm	1.18kg	5
